IDT Asset

Data-driven field management

One system to monitor and optimise the field

IDT Asset is operational monitoring and optimisation of the entire well stock in one system: real-time well status, operating mode, well-intervention selection and resource allocation across the field, instead of decisions taken well by well.

Request a demo

IDT Asset dashboard: well-stock monitoring and operating mode

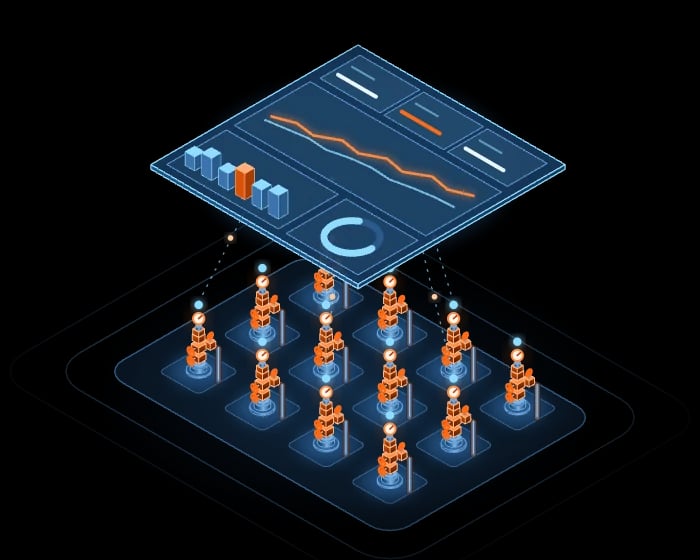

Isometric illustration: a dashboard with KPIs, a trend chart and diagrams for the whole asset floats above the well stock

The well stock under control

IDT Asset собирает телеметрию по скважинам и следит за их работой в реальном времени. Вся картина по фонду собирается в дашборды: не набор карточек отдельных скважин, а сводка, по которой видно состояние всего актива за один взгляд.IDT Asset collects telemetry from wells and tracks their performance in real time. Dashboards gather the whole picture of the stock into one summary that shows the state of the entire asset at a glance, rather than a set of individual well cards.

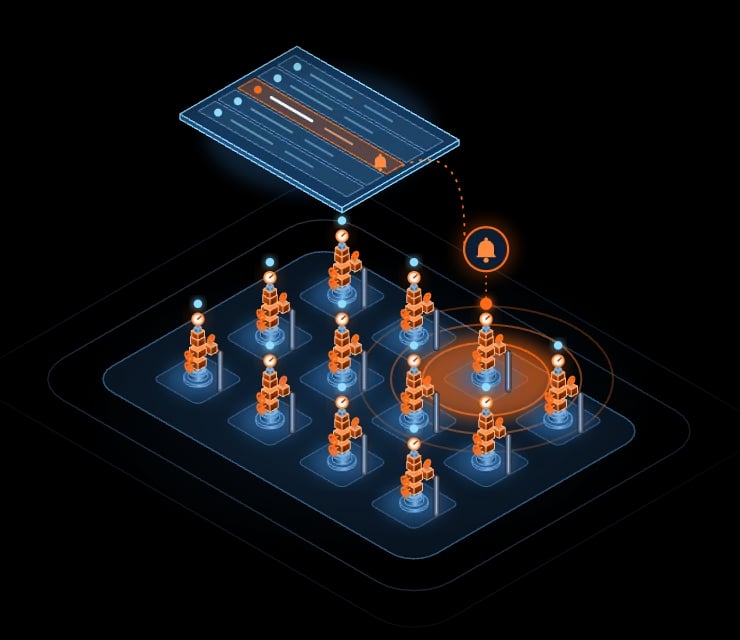

Isometric illustration: one well in the stock is lit up by an alarm, and the same well is highlighted in the overall list

The wells that need attention

When readings drift, the system raises an alarm for the complication and highlights the well in the stock list, so the engineer knows where to start the shift.

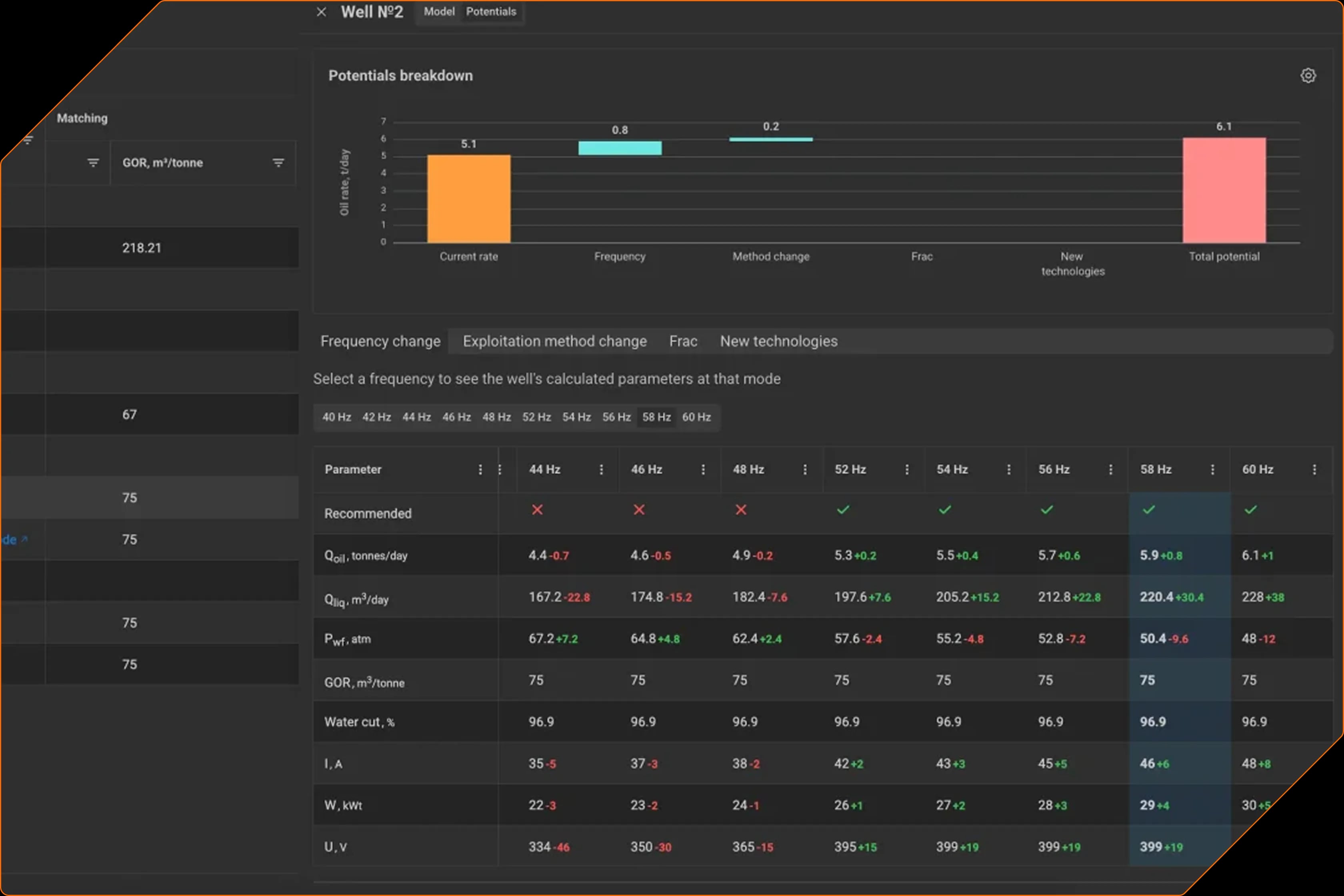

Operating mode and well potential

Operating-mode tracking
The field operating mode is kept in the system and updated as conditions on the wells change.
Frequency change
The expected change in well rate at a different ESP frequency.
Gas-lift rate change
The expected effect of increasing or reducing the injected gas volume.
Choke-size change
The expected change in rate at a different choke diameter.
Change of lift method
The well's potential when switching to a different artificial-lift method.

Well interventions with a calculated effect

Frac
The rate gain after a frac and the mode the well runs in afterwards.
Matrix treatment
How much the inflow improves after treating the near-wellbore zone.
Pump change
Sizing a pump for the well's changed conditions.
Pump-setting depth change
Recalculating the hanging depth for the current pressure profile.
Isolation work
How the water cut changes after shutting off water inflow.
Other interventions
Effect calculation for other types of well workovers using the selected parameters.

Run the options before you act

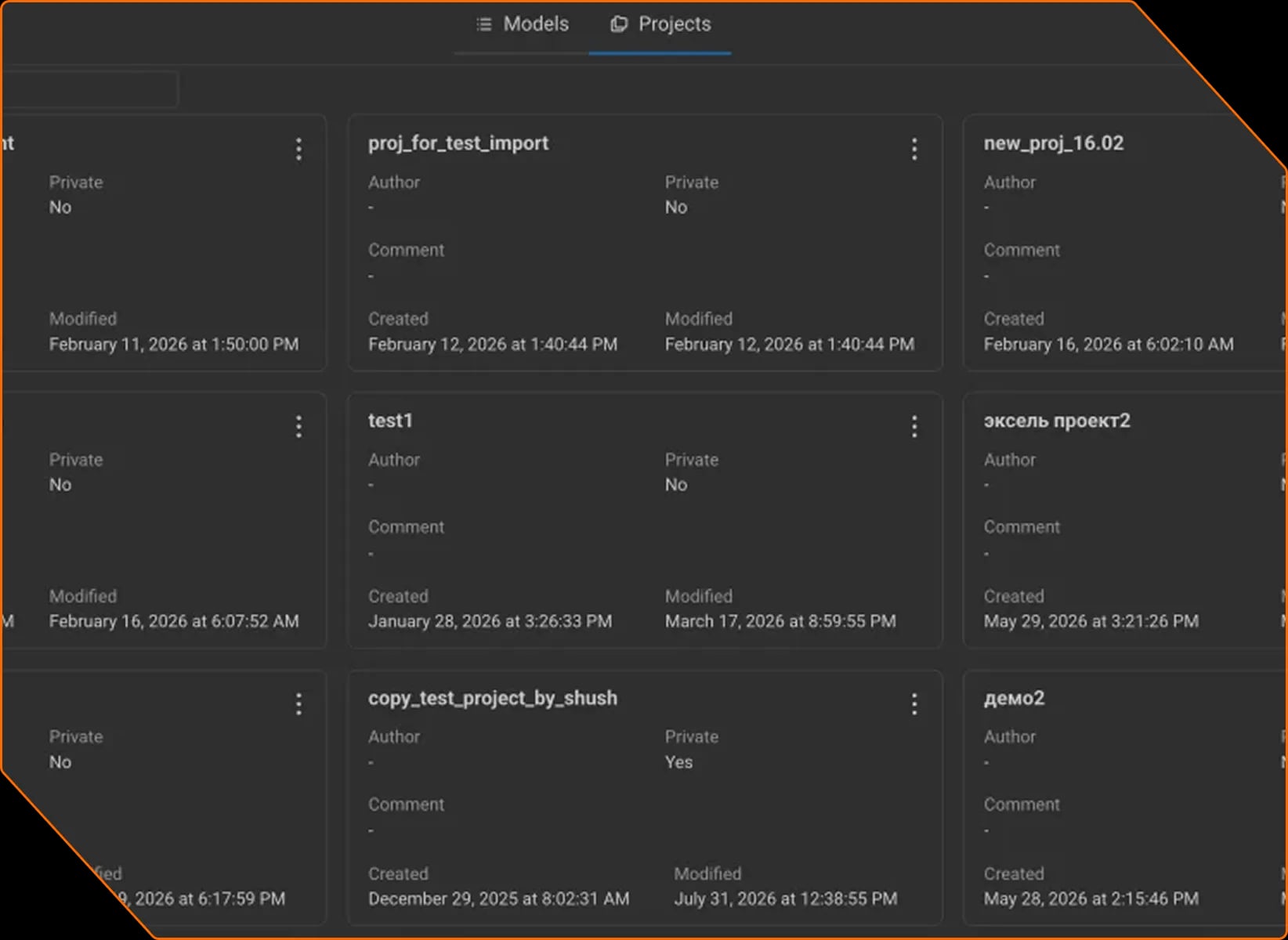

A separate project
You create a project for a specific task: revising the regime for a pad, say, or reallocating lift gas across a group of wells.
Scenarios inside a project
Within a project you can run several optimisation scenarios with different inputs.
Potential and total production
Each scenario calculates well potentials and the project's expected total production.

The well stock as one system

Lift gas reallocation
Lift gas is allocated across wells so that total production is maximised for a limited volume.
Power reallocation
Well power consumption is balanced within the available capacity.
System constraints
Recommendations are formed with the constraints of the whole system in mind, not one well in isolation.

From a well model to a field decision

IDT Asset опирается на модели скважин из IDT Well: сценарий фонда строится на моделях, которые уже адаптированы на факт по каждой скважине. Например, технолог в IDT Well уточняет модель проблемной скважины под новые данные телеметрии — уточнённая модель сразу доступна в сценарии IDT Asset, и можно пересчитать, как изменение режима одной скважины отразится на распределении мощности по группе или по фонду, не пересобирая расчёт вручную.IDT Asset is built on well models from IDT Well: a field scenario sits on models that are already matched to fact for each well. For example, a production engineer in IDT Well retunes a problem well's model to new telemetry, and the updated model is immediately available in the IDT Asset scenario: you can recalculate how a mode change on one well will affect power allocation across a group or the field without rebuilding the calculation by hand.

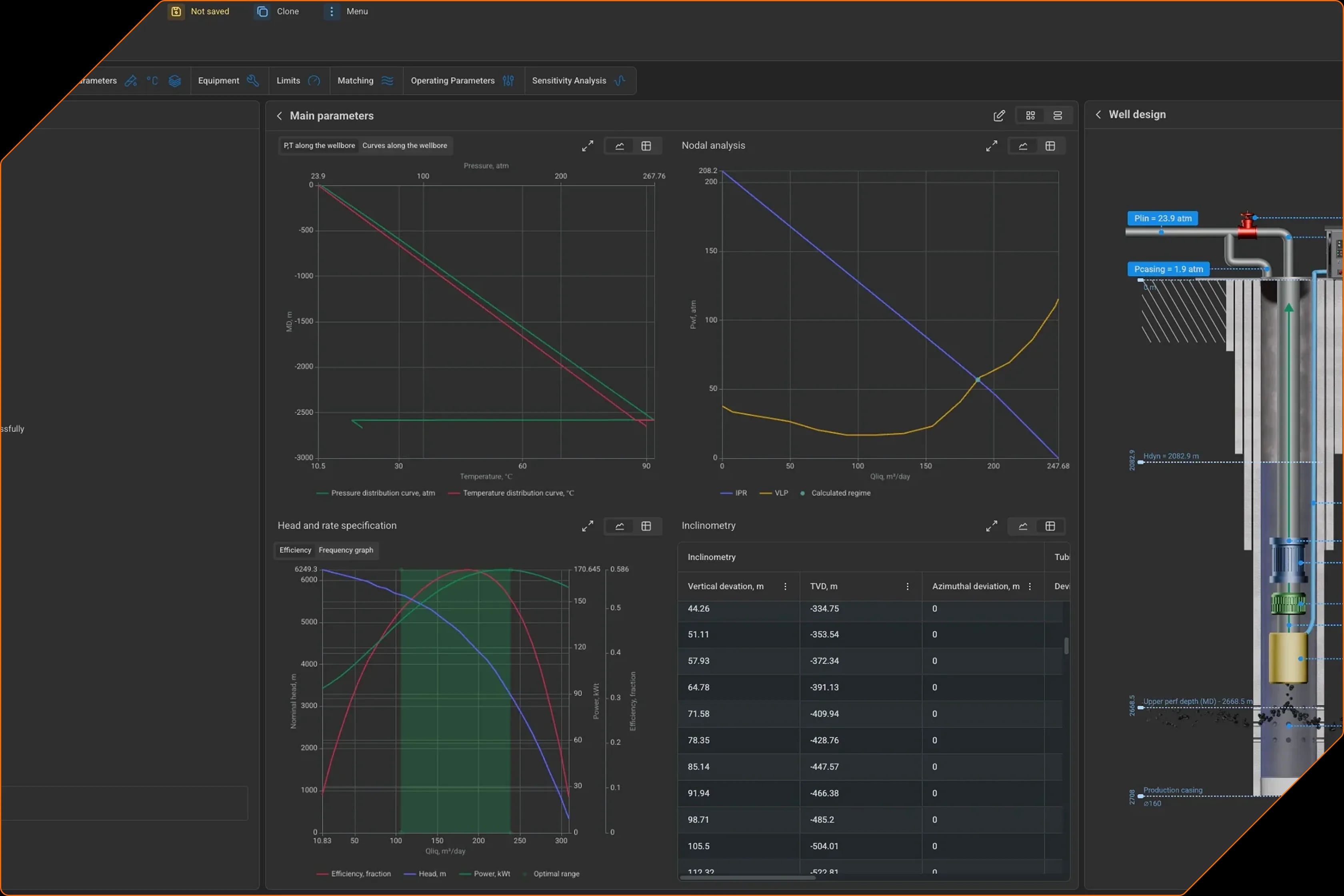

The IDT Well interface with the well model an IDT Asset scenario relies on: the well card, nodal analysis and the well design

The upper level of well-stock management

IDT Asset covers the upper level of well-stock management, from monitoring and operating mode through to intervention selection and resource reallocation between wells. Unlike IDT Edge, which acts locally and autonomously at a pad or well, IDT Asset gives the production engineer and production manager a tool for decisions at the level of the entire asset. The main users are the production engineer, the production manager and the digitalisation director who needs a consolidated view of the well stock.

Leave your contact details and we'll reach out

We'll set up a demo on wells similar to yours and show IDT Asset's monitoring, operating mode, well-intervention selection and resource reallocation between wells.
